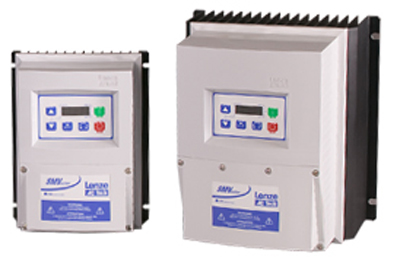

ESV402N02TXC SMVector Drive NEMA 4X Indoor (ESV402N02TXC)

DIMENSIONS: 10"H x 9"W x 8"D (254mm x 229mm x 203mm) WEIGHT: 13lbs (5.9kg)

The SMVector series is the most common and cost effective drive for a wide range of applications including packaging, material handling/conveying, positive displacement pumping and HVAC systems. With several communications protocols available and EPM memory technology, networking drives and components into a system solution can be done now or in the future.

The SMVector series can be used with 3-phase AC induction motors and is available in NEMA 1 (IP31), NEMA 4X (IP65) and NEMA 4X (IP65) with an integral disconnect switch. Filtered input versions of the SMV are available in NEMA 4X (IP65) models for compliance with the CE EMC directive. Programmable digital and analog I/O allow the drive to be configured for many application specific tasks such as multiple preset speeds, electronic braking and motor jogging, to name a few.


--Communication Modules: With plug-in communications modules, the SMVector is easily integrated into any one of today's most commonly used industrial networks. Whether the application is to automate a single machine or an entire facility, the SMVector is fully equipped to make the process a snap.

--Remote Keypad: Simple 4 wire connection between the SMVector drive and the remote keypad provides for drive operation (start, stop, direction and speed) and programming. Includes 4 digit LED display. Measures only 3.4in (H) x 2.2in (W). Includes gasket to meet NEMA 4X rated environments.

--Dynamic Braking: Packaged Dynamic brake option includes control and resistors in an easy to implement solution for fast stopping or deceleration requirements.
